What Is Engine Compression Ratio?

Engine compression ratio measures how much your engine squeezes the air-fuel mixture before ignition. Specifically, it compares the full cylinder volume when the piston sits at the bottom of its stroke to the smaller volume left when the piston reaches the top. Engine compression ratio is the ratio of the full cylinder volume when the piston is at bottom dead center to the reduced volume when the piston reaches top dead center.

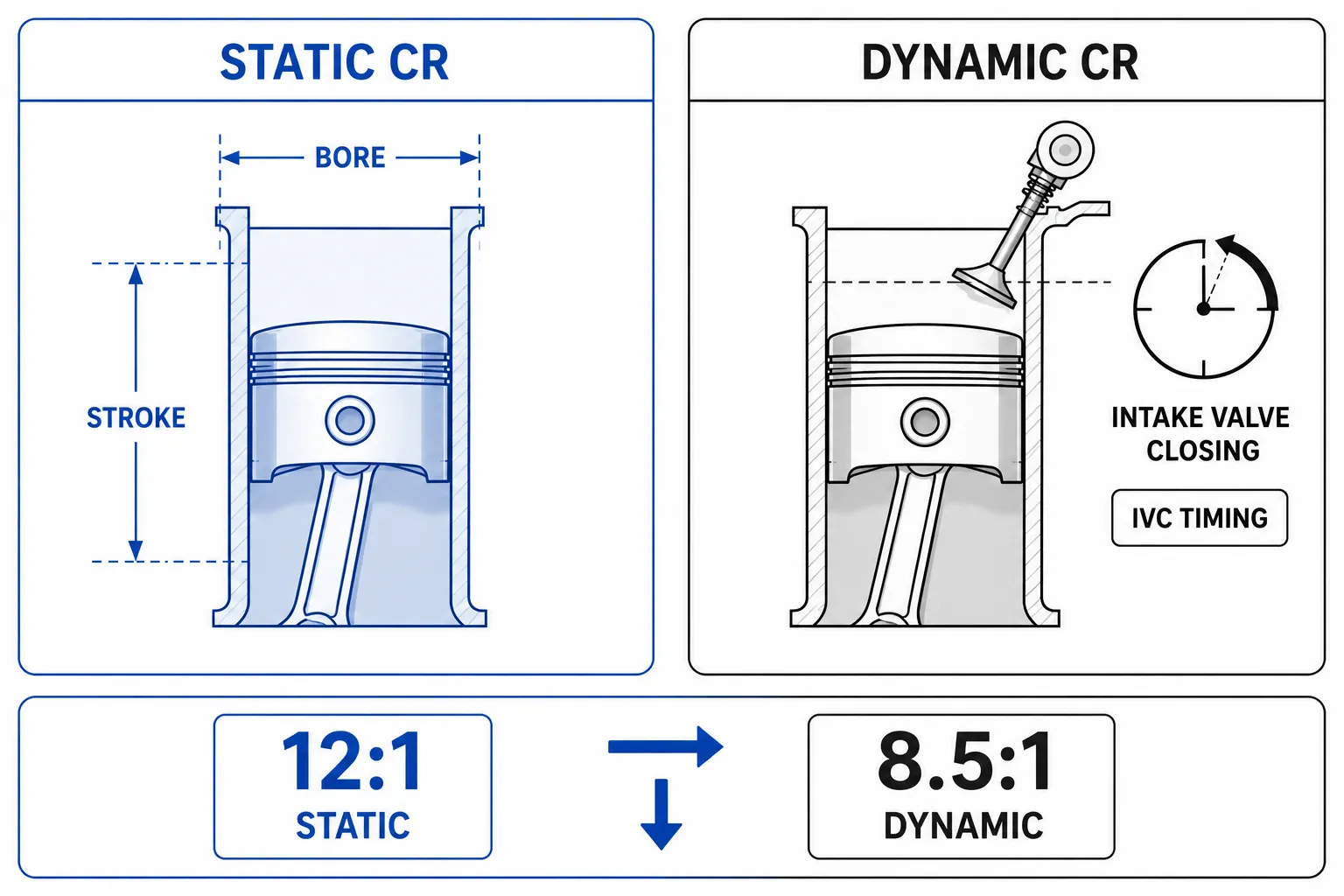

Static vs Dynamic Compression Ratio

Static compression ratio comes from pure geometry bore, stroke, and chamber volume alone. A static compression ratio calculator only needs physical measurements to give you this number. Dynamic compression ratio, however, also factors in when your intake valve closes. So a dynamic compression ratio calculator gives you a lower, more realistic number that reflects what actually happens during combustion.

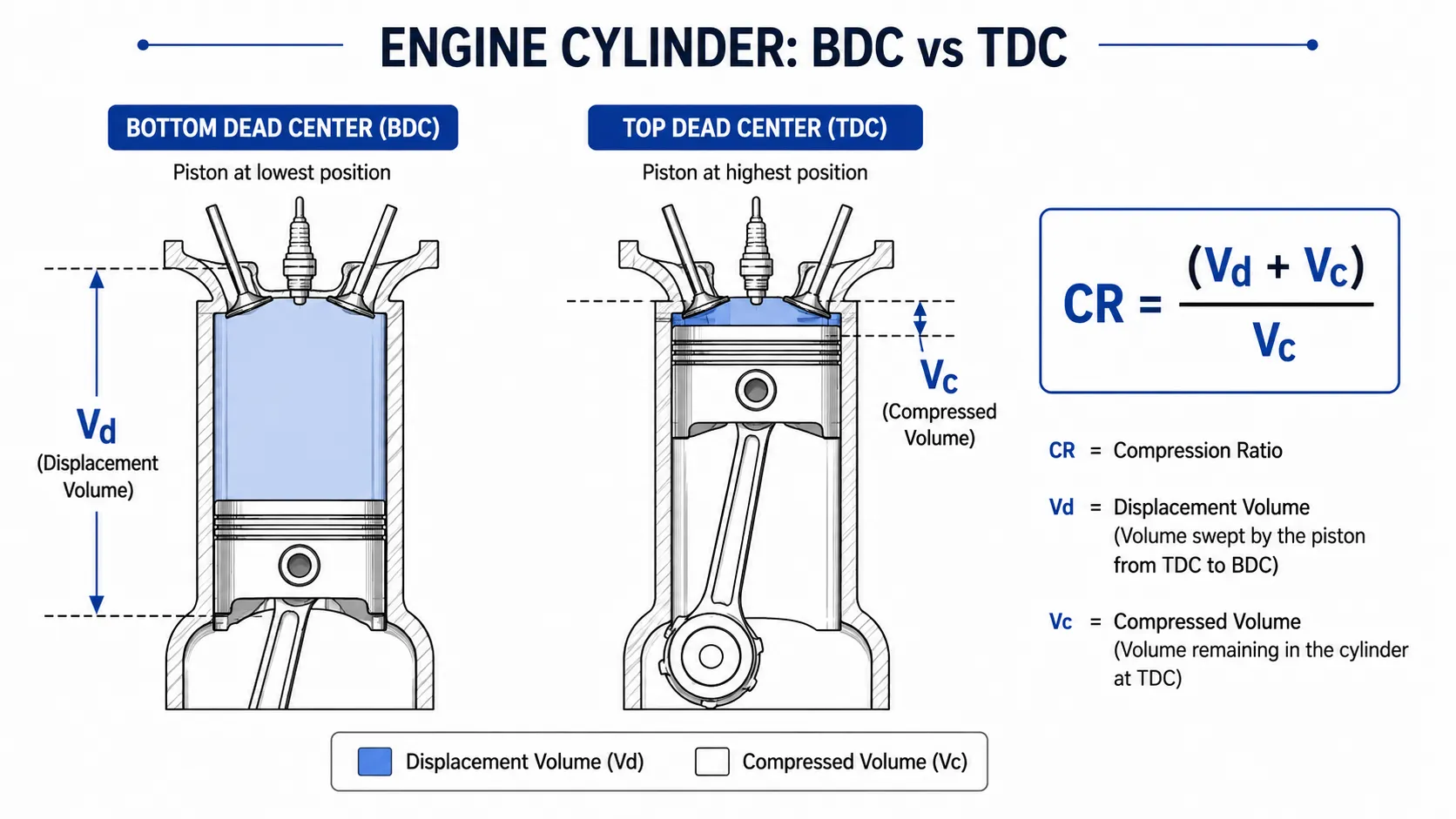

The Compression Ratio Formula Explained

Every compression ratio formula comes down to one equation:

CR = (Vd + Vc) / Vc

• Vd = Displacement volume swept by the piston
• Vc = Compressed volume above the piston at top dead center

The compression ratio formula is CR = (Vd + Vc) / Vc, where Vd is the displacement volume swept by the piston and Vc is the compressed volume above the piston at top dead center.

Displacement volume depends directly on your bore diameter and piston stroke length the wider and longer the cylinder, the more volume it displaces. Meanwhile, combustion chamber volume makes up most of Vc, though gasket and dome volume also factor in. Once you know both numbers, the math takes seconds.

Breaking Down Each Input Variable

Before you calculate, gather these measurements:

• Bore diameter : engine spec sheet or direct cylinder measurement
• Piston stroke length : manufacturer spec sheet or crank throw measurement
• Combustion chamber volume : cc’ing kit or head specs
• Head gasket thickness & gasket bore : gasket packaging
• Deck clearance : direct measurement with a dial indicator
• Piston dome volume : piston manufacturer’s spec sheet

Advanced Inputs Dome Volume, Deck Clearance, and Gasket Bore

A positive piston dome raises your CR, while a dished piston lowers it so enter dome volume as a negative number when your piston is dished. This single input changes your final ratio significantly.

Deck clearance measures the gap between your piston crown and the deck surface at TDC. A negative value means the piston sits above the deck, which raises CR further than most builders expect.

Gasket bore and compressed thickness affect gasket volume, which factors directly into your compressed volume. Even small gasket differences shift your final number, so don’t skip this input.

Quick Reference: Inputs and Their Impact on CR

Static Compression Ratio Calculator How It Works

A static compression ratio calculator takes your physical engine measurements and computes the mechanical CR before any camshaft timing enters the picture. A static compression ratio calculator uses physical engine dimensions bore, stroke, combustion chamber volume, gasket thickness, deck clearance, and piston dome to compute the mechanical compression ratio before cam timing is factored in.

You’ll use a compression ratio calculator like this during engine design, piston selection, and head gasket decisions. Because static CR reflects pure geometry, it gives you a stable baseline number before you even pick a camshaft. Once you know your combustion chamber volume and other inputs, the static number comes together quickly, setting up the next step: dynamic CR.

Dynamic Compression Ratio Calculator Going Deeper

A dynamic compression ratio calculator goes one step further than static CR. It factors in intake valve closing (IVC) timing, so it reflects the air your engine actually traps and compresses during a real combustion cycle.

This number always runs lower than static CR, because some compression stroke happens before the intake valve fully seals. As a result, a high static CR can still run safely on pump gas if your cam timing is aggressive enough to lower the dynamic number. Understanding static vs dynamic compression ratio helps you avoid guessing at fuel requirements.

Why Dynamic CR Matters for Cam Timing and Engine Tune

Aggressive cam timing with a late intake valve closing point effectively reduces dynamic CR, even when static CR stays high. For example, a 12:1 static CR engine with an aggressive cam may land at only 8.5:1 dynamic CR a number that runs fine on pump gas.

This is exactly why tuners check both numbers from a dynamic compression ratio calculator before choosing a camshaft or calibrating fuel maps. Skipping this step often leads to detonation problems that seem to come from nowhere.

2-Stroke Compression Ratio Calculator Key Differences

A 2 stroke compression ratio calculator works differently than a 4-stroke tool, because port timing not valve timing decides when the charge gets trapped. True compression only begins once the exhaust and transfer ports close completely.

A 2-stroke compression ratio calculator uses bore, stroke, and combustion chamber volume to compute CR, but effective compression on a 2-stroke engine is lower than the geometric ratio because port timing determines when the charge is fully trapped. So even though the math uses the same (Vd + Vc) / Vc formula, the real-world number often runs lower than it looks on paper.

For this calculation, you’ll need bore, stroke, combustion chamber volume, and squish band volume. Dirt bike, PWC, and small engine builders need these exact inputs for an accurate result, not theoretical estimates.

How to Calculate Compression Ratio on a 2-Stroke Engine

• Measure your bore, stroke, and combustion chamber volume directly.
• Calculate displacement volume: Vd = (π / 4) × bore² × stroke.
• Add combustion chamber volume and squish volume together to get Vc.
• Apply the formula: CR = (Vd + Vc) / Vc.
• Plug your numbers into the 2 stroke compression ratio calculator below and get your result in seconds, no manual math required.

Most 2-stroke engines land between 7:1 and 9:1 geometric CR, though effective compression often runs lower.

Compression Ratio Calculator for Motorcycles

Motorcycle engines rev higher and run tighter tolerances than most car engines, so precise numbers matter even more here. A compression ratio calculator motorcycle builders trust uses the same core formula as car engines, but smaller combustion chambers and tighter deck clearances demand more careful measurement.

Single-cylinder, parallel-twin, V-twin, and inline-4 motorcycle engines each carry slightly different CR expectations based on displacement and intended use. Because of this, a generic compression ratio calculator built only for car engines often misses motorcycle-specific nuances which is exactly why a dedicated calculation matters here.

Ideal Compression Ratio Range for Motorcycle Engines

Standard street bikes typically run between 10:1 and 11.5:1 on pump premium, while sport and supersport bikes often push 12:1 to 13.5:1, requiring premium or race-grade octane. Off-road 4-stroke dirt bikes commonly run 12:1 to 13:1, whereas 2-stroke dirt bikes sit lower at 8:1 to 9:1 geometric CR, with higher effective compression from port timing. Modified motors built for race fuel or E85 often exceed 13:1.

Most street motorcycles run a compression ratio between 10:1 and 12:1, with sport bikes and modified engines pushing higher ratios that require premium fuel or race-grade octane to prevent detonation. High-revving engines tolerate these higher numbers because knock duration at high RPM stays shorter, though precise tuning remains essential.

What Is the Best Compression Ratio for Performance?

There’s no single best compression ratio for performance it depends entirely on engine type, fuel, and intended use. Street cars on pump gas typically run 9:1 to 10.5:1, while performance builds on premium fuel push 10.5:1 to 12:1. Race engines on race fuel often exceed 13:1.

As CR climbs, octane rating and detonation become directly connected concerns. Higher compression squeezes the air-fuel mixture harder, which raises combustion temperature and increases detonation risk unless your fuel’s octane rating keeps pace.

What Compression Ratio Is Too High for Pump Gas?

A compression ratio above 10.5:1 is generally too high for regular pump gas and requires premium fuel (91–93 octane) to prevent engine knock and detonation. Above 11.5:1, most engines need race gas or an ethanol blend to run safely.

Knock (detonation) happens when the unburned end-gas auto-ignites after the spark, instead of burning smoothly; pre-ignition is when the mixture lights before the spark. This uncontrolled combustion can damage pistons, rings, and head gaskets quickly if left unaddressed.

Get Your Exact Compression Ratio Now

You understand the formula, the inputs, and what your number means. Now enter your measurements into the compression ratio calculator below for an instant result.
